| Wingspan |
1500mm (59.1in) |
| Length |
1663mm (65.5in) |
| Flying Weight |
5kg (11 lb) with 12S Battery |
| S-EDF/Motor |
S-EDF 105mm 4258/700KV brushless |
| Number of EDF Blade |
11 blades |
| Cruising speed |
about 180 km/h |
| Flying time |
about 3-5 mins |
| Wing area |
34.28 dm2 |
| Wing load |
145.9 g/dm2 |
| Main material |
35 times EPO |
| Painting surface |
matte paint |
| Suitable experience level |
□Zero basis □Beginner ■Intermediate □Advanced |
| PNP Assembly difficulty |
□☆10mins ■★☆30mins □★★60mins |
| Suitable for ambient temperature |
0℃～40℃ |
| Radio System |
7 channel (required & not included) |
| ESC |
160A/12S Hobbywing AS150 |
| UBEC |
6A (2P Du-Pont and JR connector) |
| Control System |
Integrated Mix-Control system |
| Servos |
25g×3 Metal gear with 190mm lead (Left & right ailerons & rudder forward)
25g×2 Metal gear with 480mm lead (Flap forward)
25g×2 Metal gear with 80mm lead (Elevator forward)
12g×1 Metal gear with 450mm lead (Nose wheel steering forward)
12g×1 Metal gear with 300mm lead (360°lock Hatch cover forward) |
| Recommended Receiver Battery |
2S,7.4V,1800～2000mAh,LiPo with T type plug(required & not included) |
| Recommended Power Battery |
6S,22.2V,5000～6000mAh×2,LiPo with AS150 type plug(required & not included) |
| Ailerons |
Yes |
| Flaps |
Yes |
| Elevator(Horizontal tail) |
Yes |
| Rudder(Vertical tail) |
Yes |
| General landing gear control system |
Yes |
| LED lights system |
Yes |
| Electromagnetic brake system |
Yes |
| Reinforced gyro |
Selective configuration (not included) |
| Packaging / Size |
Packing Box + Outer Box(Card mark)/132.5×46×39.5(cm) |
| CG (Center of Gravity) |
6.69in from the leading edge of the Main Wing |

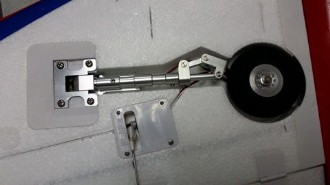

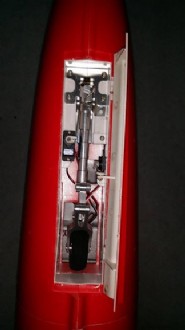

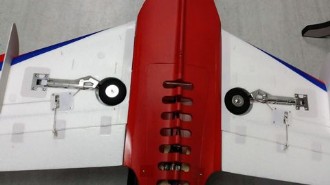

| Landing Gears |
Metal electric retractable hydraulic landing gear×3 |
| Battery Charger |
LiPo battery charger (required & not included)
|
