Compatible with: Futaba, Spektrum, Graupner, Jeti, Multiplex and JR
receivers
Allows the use of all channels provided by a radio control system
by using two highly specified receivers
Access to a maximum of eighteen channels
Integral SRS, allowing the use of two receivers
High-current Deans power socket
S-BUS output
HoldFailsafe option for each output
User-variable frame rate
Can be updated using the PowerBox USB Interface
Three year limited warranty beginning at date of purchase

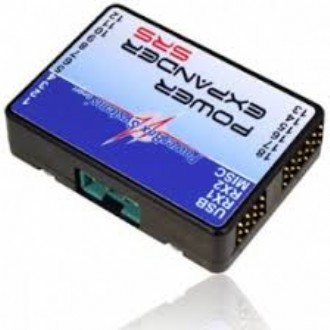

PowerBox PowerExpander SRS with Deans Connector

Operating Voltage: 4.0V - 9.0V
Power Supply: 2S LiPo, 2S LiIon, 2S LiFePo, 5S NiCdNiMH
Current Drain Power-on state: 25mA
Maximum Load Current: Peak 30A
Signal Input: Serial
Supported RC Systems: Futaba, Spektrum, Jeti, Graupner, JR, Multiplex
Receiver Redundancy: SRS
Channels: 18
Servo Sockets: 18
Servo Signal Resolution: 0.5s
Signal Frame Rate: 12ms, 15ms, 18ms, 21ms
Dimensions, L, W, H : 2.2 x 1.6 x 0.55 (55 x 40 x 14 mm)
Weight: 0.88oz (25g)
Temperature Range: -22 to 167F (-30C to +75C)
